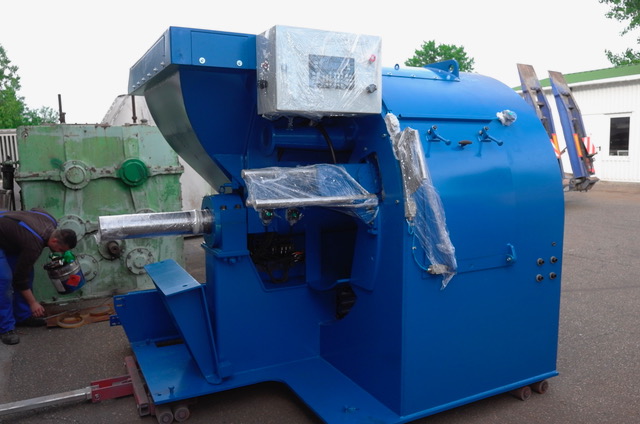

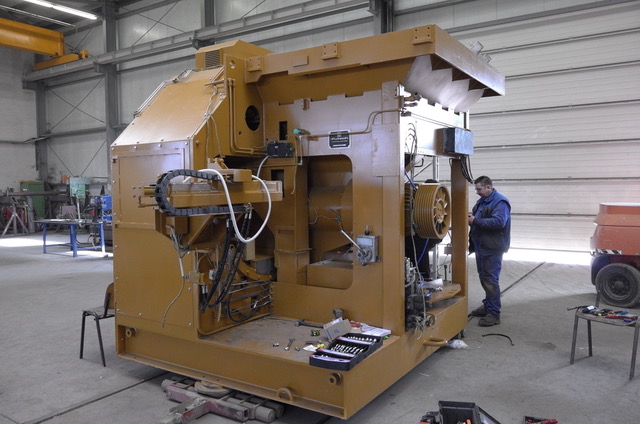

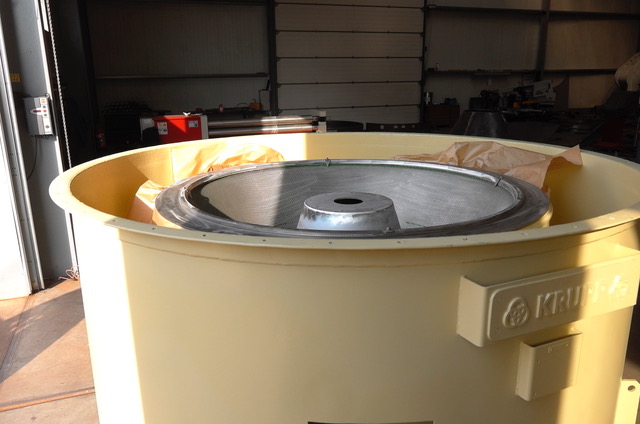

Manufacture and renovation of food industry machines


Manufacture and renovation of food industry machines


Manufacture and renovation of food industry machines


Manufacture and renovation of food industry machines


Manufacture and renovation of food industry machines


Manufacture and renovation of food industry machines

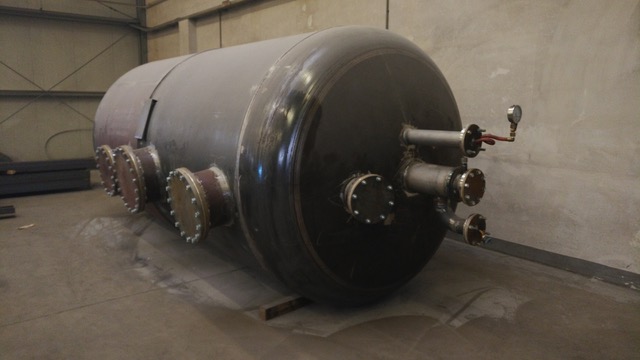

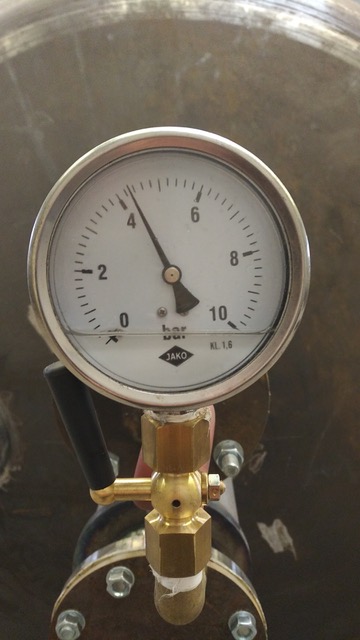

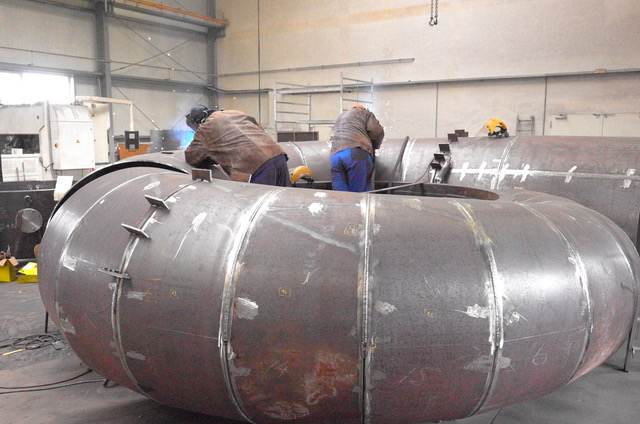

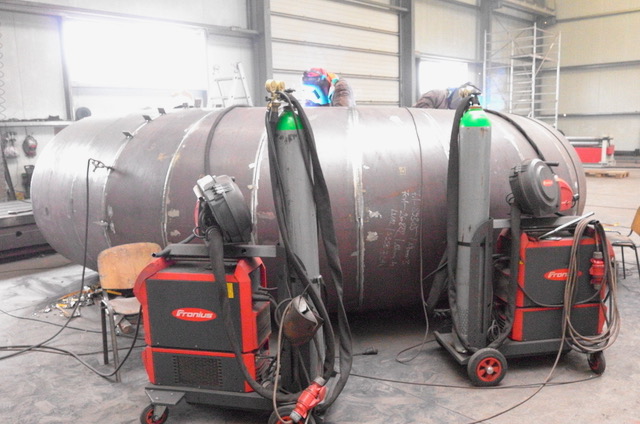

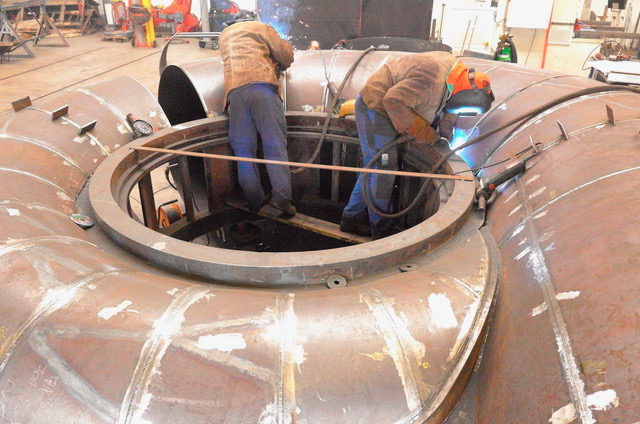

Plumbing equipment and filter tanks for drinking water


Plumbing equipment and filter tanks for drinking water


Plumbing equipment and filter tanks for drinking water


Plumbing equipment and filter tanks for drinking water


Plumbing equipment and filter tanks for drinking water

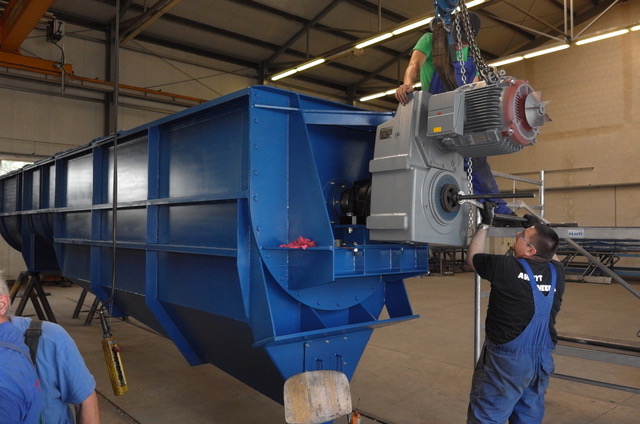

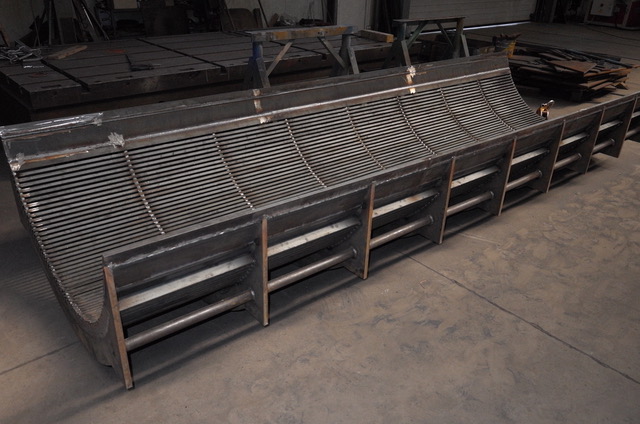

Snails


Snails


Snails

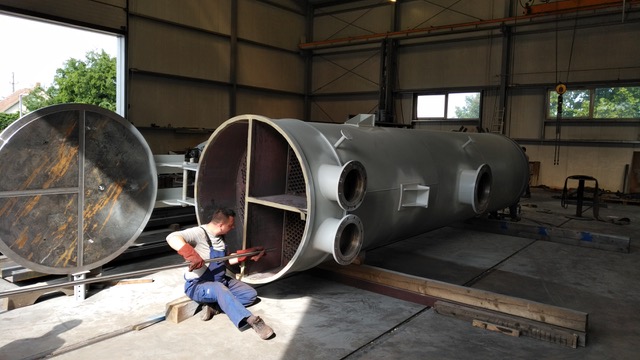

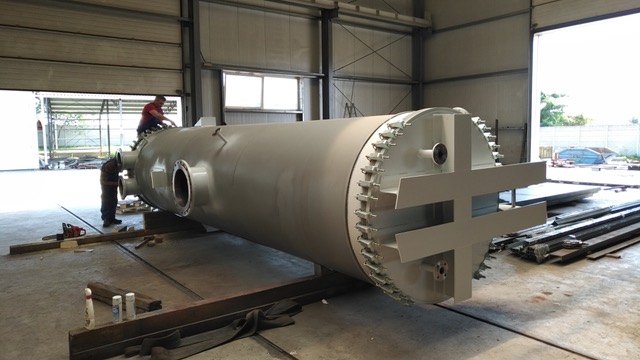

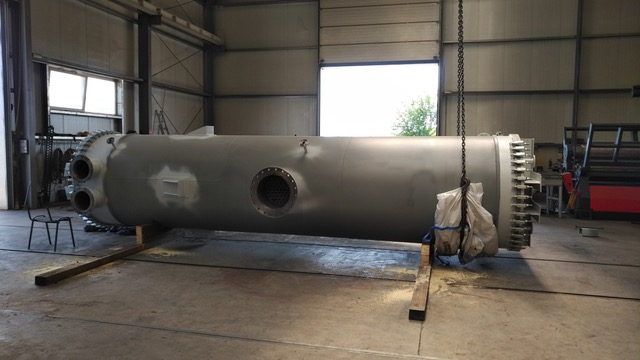

Tube heaters


Tube heaters


Tube heaters

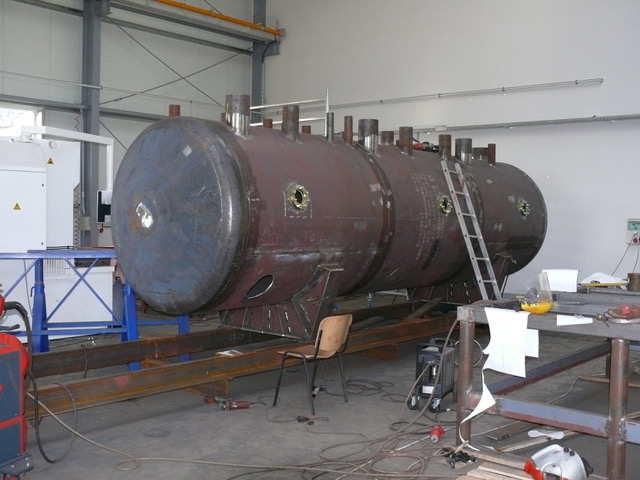

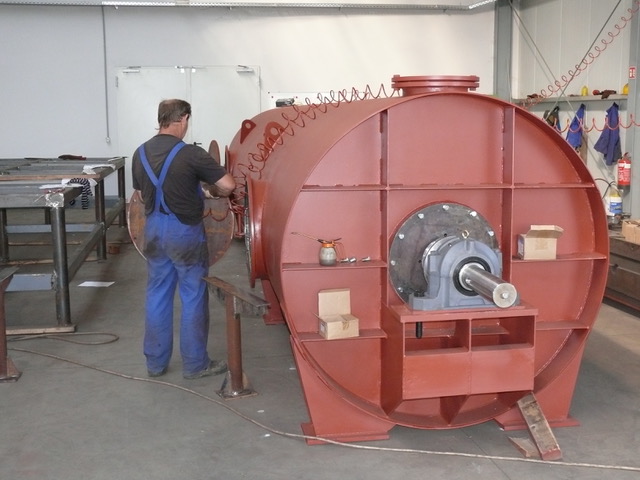

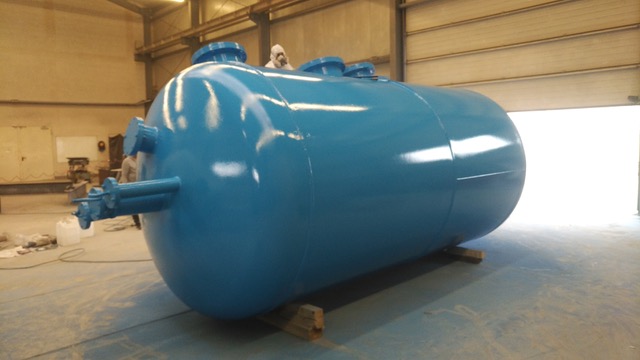

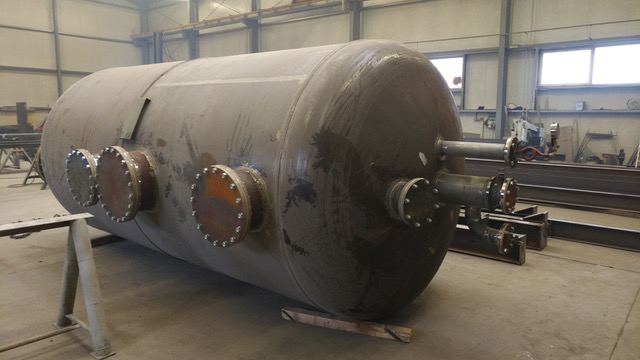

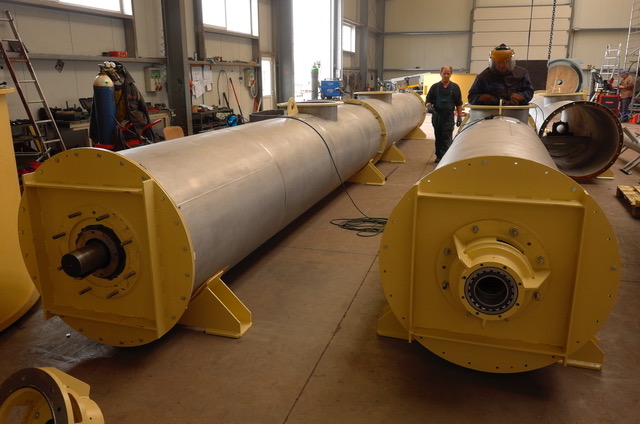

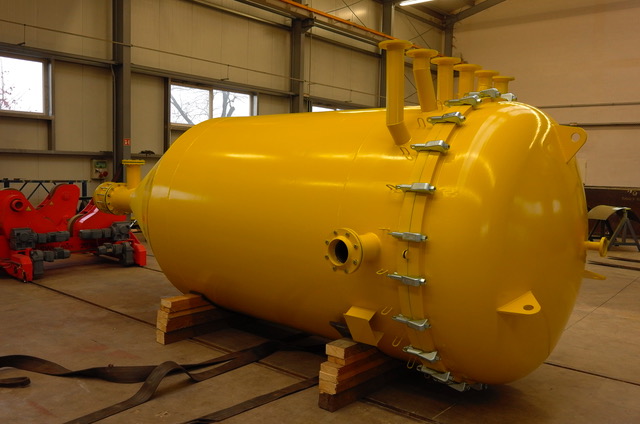

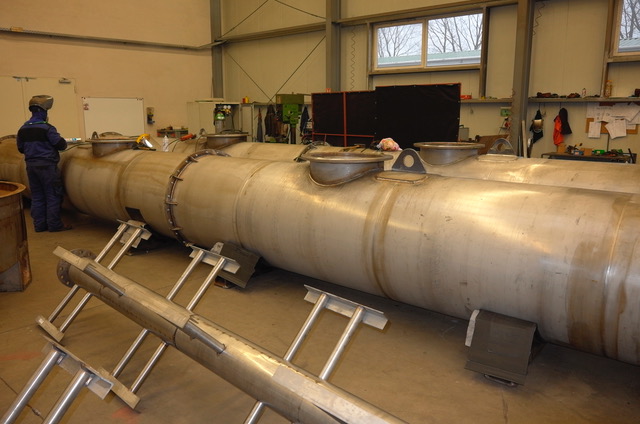

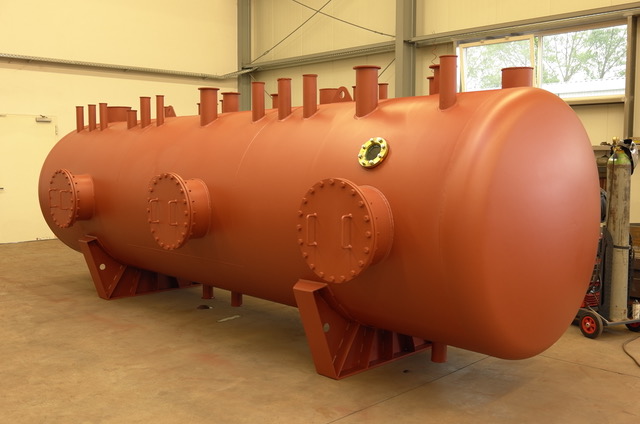

mixers tanks


mixers tanks


mixers tanks


mixers tanks


mixers tanks


mixers tanks


mixers tanks


mixers tanks


mixers tanks


mixers tanks


mixers tanks

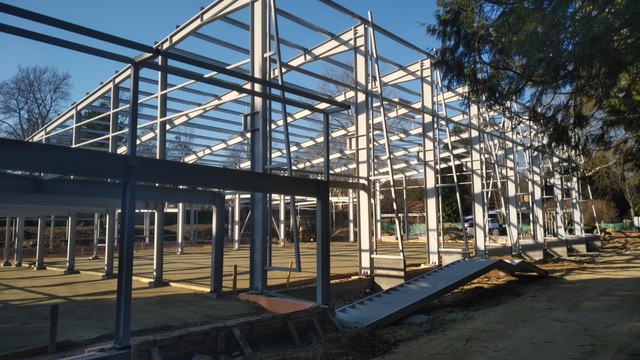

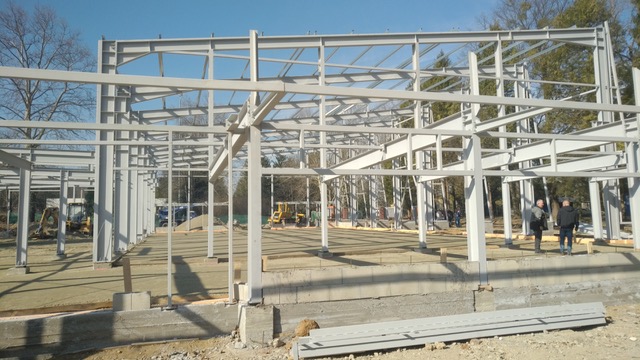

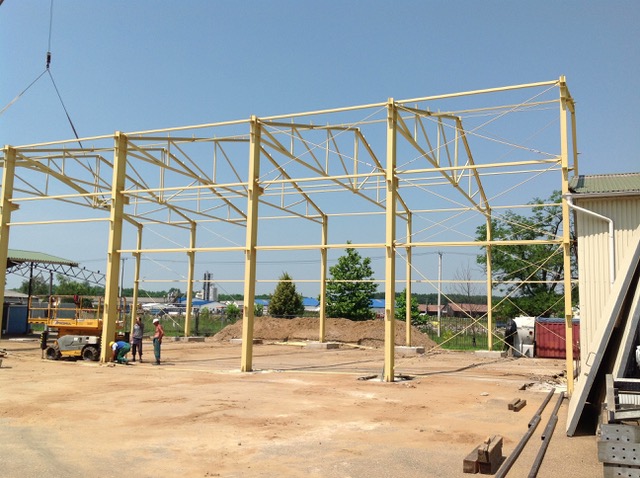

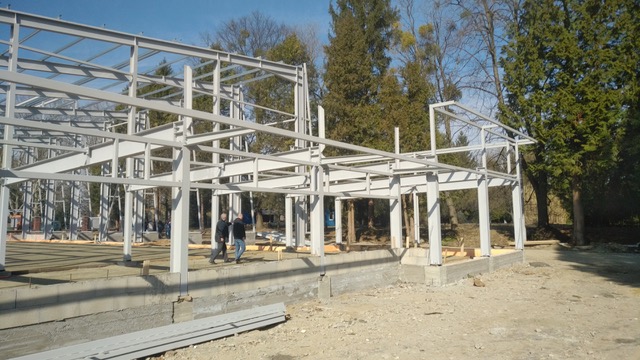

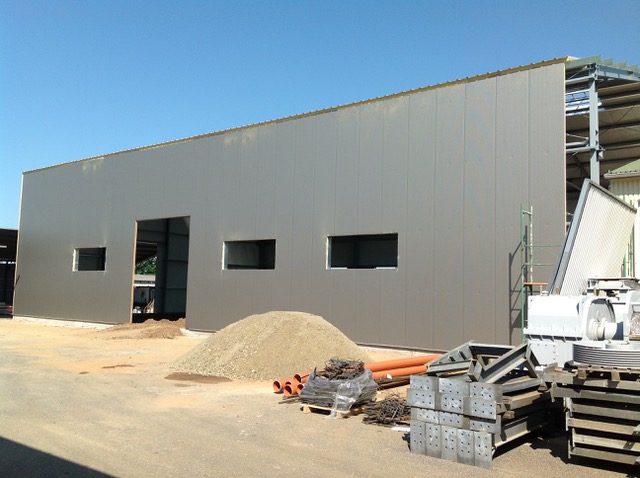

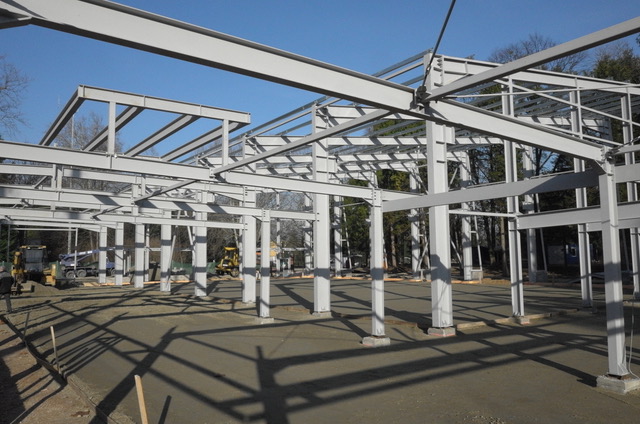

Hall production -assembly


Hall production -assembly


Hall production -assembly


Hall production -assembly


Hall production -assembly


Hall production -assembly

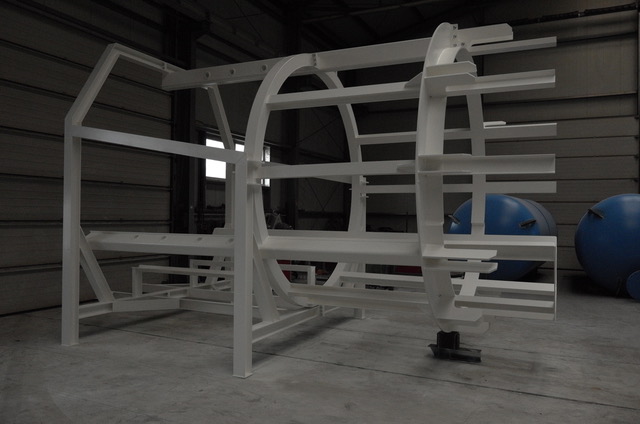

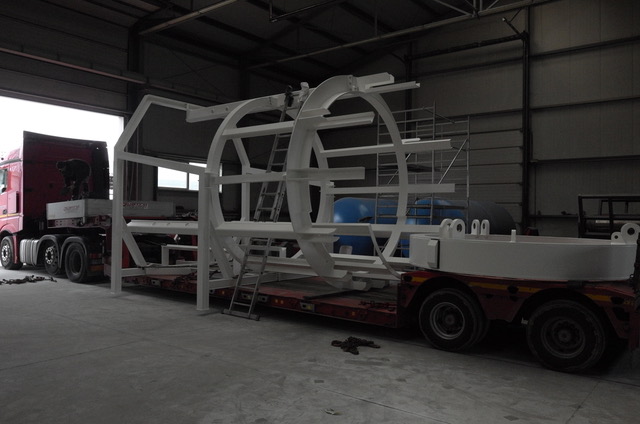

Supporting structures


Supporting structures

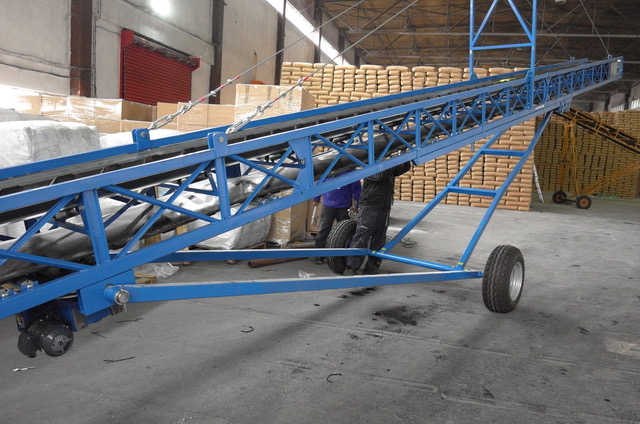

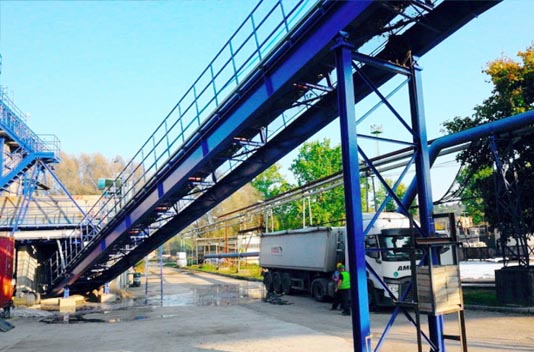

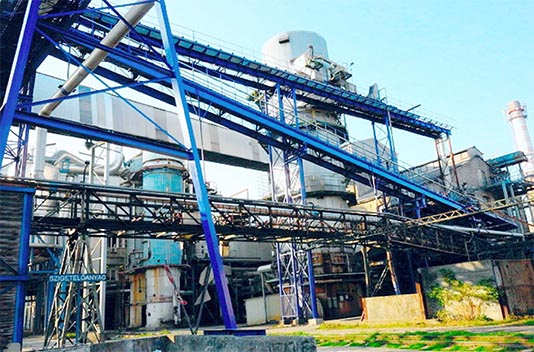

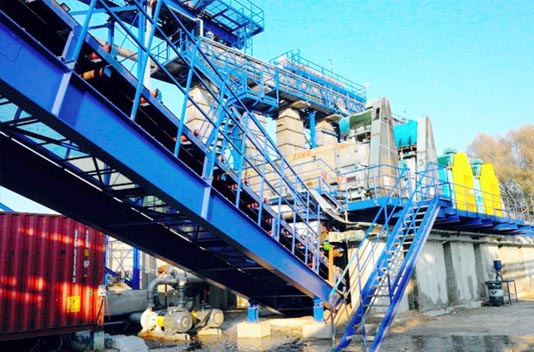

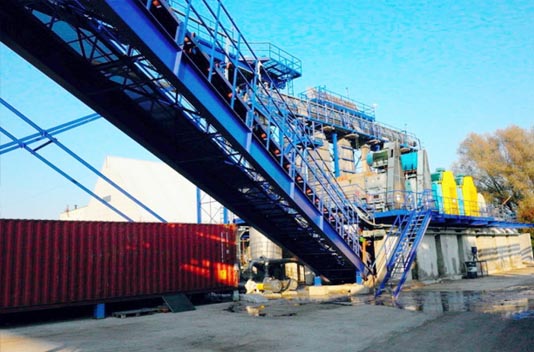

Conveyor belts


Conveyor belts


Conveyor belts


Conveyor belts


Conveyor belts


Candle filter TK-FPI


Filtration area – 120 – 174 m²
Quantity of filtrating elements – 138 – 203
Pressure – 6 bars
Diameter of shell – 2000 – 2400 mm
Volume (working) – 11 – 18.5 m³
Material of filtration elements – stainless steel
Country of origin – Hungary

Prelimer TK-APHD


Prelimer TK-APHD Type – Briegel-Muller
Productivity – 7000 – 9000 tbpd
Type – horizontal
Quantity of chambers – 8 pcs.
Rotation speed – 8 – 12,5 rpm
Drive unit – 55 KW, 380 V
Volume (working) – 240/280 m³
Country of origin – Hungary

Cossette mixer TK – OS


Productivity – 6000 tbpd
Drive unit – 45 kW, 380 V
Rotating speed – 0,4 – 1,4 rpm
Country of origin – Hungary

carbonation tank TK-AC-I


Productivity – 4500 – 12000 tbpd
Volume of pan – 119 – 250 m³
Temperature (working) – 85 – 90 °C
Type of bubbling chamber – 8 or 12 rays
Duration of process – 10 – 15 min
pH = 10,8 – 11,2
Country of origin – Hungary

carbonation tank TK-AC-II


II Productivity – 4500 – 12000 tbpd
Volume of pan – 121 – 158 m³
Temperature (working) – 85 – 90 °C
Duration of process – 6 – 11 min
Type of bubbling chamber – 8 rays
pH = 10,8 – 11,2
Country of origin – Hungary

Screw sand washer TK-SPP


Productivity by dirt – 1000 – 2000 kg/h
Volume – 1,146 m³
Angel of screw – 30 °
Drive unit – 1,5 – 3,0 kW
Rotation speed – 4,4 rpm
Temperature (working) – 90 °C
Country of origin – Hungary

Falling film evaporator TK-PVA


r> Heating surface – 1500 – 6000 m²
Working pressure – up to 4 bar
Temperature (working) – up to 152 °C
Length of tubes – 8 – 12m
Tubes made from stainless steel
Country of origin – Hungary

Vacuum pan TK-VP


Charging – 60/75 t
Volume – 40/50 m³
Diameter of shell (inner) – 4500/4500 mm
Heating surface of steam chamber – 317/400 m³
Drive unit – 60/46 kW or 66/35 kW
Agitator rotation speed – 73/37 rpm or 57/38 rpm
Country of origin – Hungary

Cooling crystallizer TK-VK


Volume – 350 / 450 m³
Minimal cooling surface – 440/640 m²/m³
Maximal cooling surface – 640/840 m²/m³
Height of cylindrical part – 22 300/28 000mm
Country of origin – Hungary

Mixer of seed magma TK-MMY


Volume – 15 m³
Length of shell – 5 700 mm
Material connecting with product covering with stainless steel
Drive unit – 4 kW
Rotation speed – 0,6 – 3,2 rpm
Country of origin – Hungary

Massecuite mixer TK-MP


Volume – 49 m³
Drive unit – 2 x 5,5 kW
Diameter of shell – 2 370 mm
Length of shell – 15 200 mm
Country of origin – Hungary

Cooling crystallizer for seed magma preparation TK-AXK


Volume – 5 m³
Specific heat exchanging area – 5,54 m²/t
Diameter of shell – 2 000 mm
Drive unit – 18,5 kW
Country of origin – Hungary

Water treatment clarifier TK-OTMB

Water treatment clarifier TK-OTMB
Productivity by beet – 2 000 tbpd
Productivity by water – 690 m³/h
Humidity in dregs – 84-86%
Height of unit – 18 435 mm
Country of origin – Hungary

Vibrating sugar transporter TK-ST


Productivity – 50 t sugar/h
Flow speed – 0,35 m/s
Drive unit – 37 KW, 380V
Parts connection with product cover with stainless steel
Country of origin – Hungary

Elevator for wet sugar – ТК-Е


Type – chain
Productivity – up to 8 000 tbpd
Buckets made from stainless steel
All technical dates could be different, depending from the productivity.
Country of origin – Hungary

Sugar cooler TK-OS

Type – vertical
Productivity – 600 – 1200 tspd
Quantity of heat exchange elements – 41 – 82 pcs.
Total surface of the heat exchange surface – 244 – 488 m²
Process pressure – 3 bars
Material of manufacture – stainless steel
Drive unit – 2 x 0.9 kW
Country of origin – Hungary

Dust separation system


Scrubber Venturi
Productivity – 45 000-95 000 m³/h
Water consumption – 0.2-0.4 kg/m²
Pressure – 2 kg/cm²
Diameter of dust catcher – 2200 mm
Material of manufacture – stainless steel
Country of origin - Hungary

Bulk storage sugar silo TK-S


Productivity – 50 000 t
Storage temperature – 22 – 27 °C
Diameter of silo – 45 000 mm
Height of silo – 54 000 mm
Power consumption – 470 kW
Country of origin - Hungary
